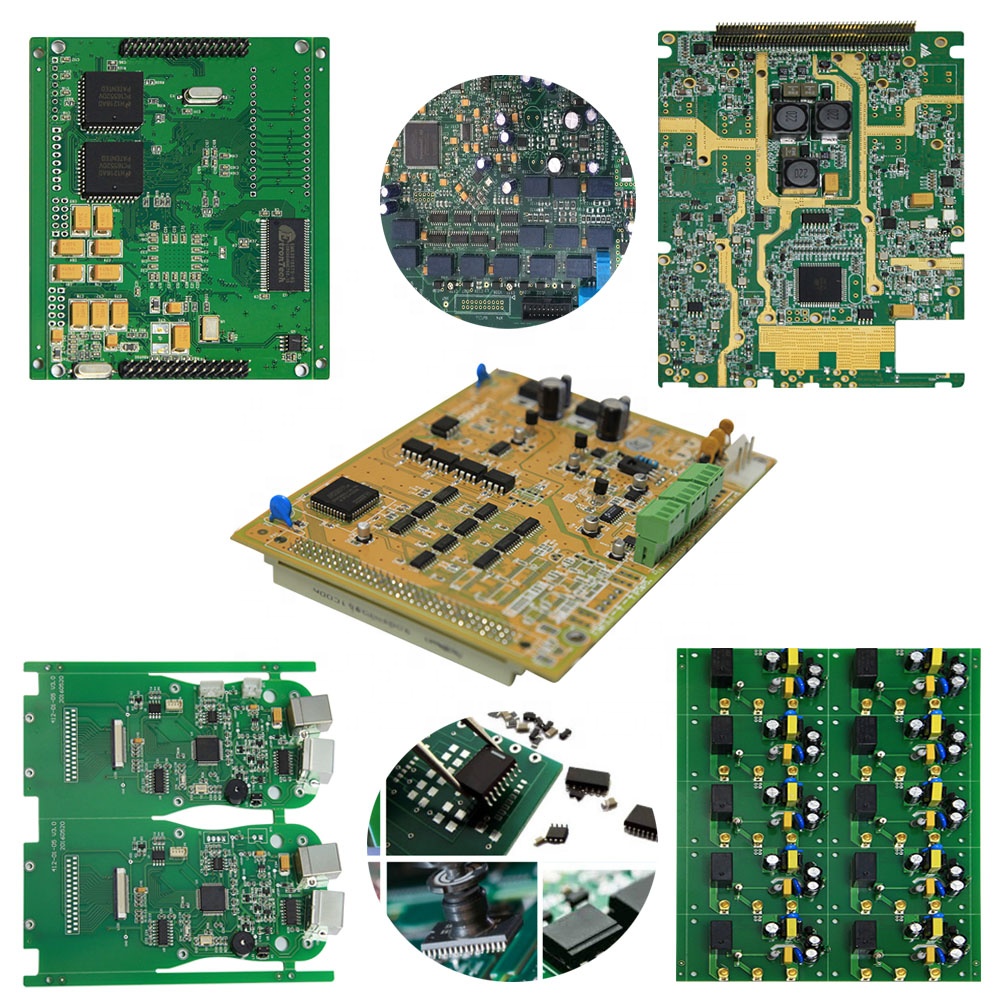

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions. Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
The product has eight parameter options. Please refer to the specifications below and consult customer service for a quote:
| Rigid PCB Manufacturing Capability | |||
|---|---|---|---|
| Category | Volume Production | Sample Processing (Standard) | Advanced Capability |
| Layer Count | - | 1-68L | 64 Layer |
| Max Thickness | - | 10mm (394mil) | 14mm (551mil) |
| Min Line Width/Space (Inner) | - | 2.2mil / 2.2mil | 2.0mil / 2.0mil |
| Min Line Width/Space (Outer) | - | 2.5mil / 2.5mil | 2.2mil / 2.2mil |
| Alignment capability (Core) | - | ±25um | ±20um |
| Inner Layer Alignment | - | ±5mil | ±4mil |
| Max Copper Weight | - | 6 Oz | 30 Oz |
| Mechanical Drilling Size | - | ≥0.15mm (6mil) | ≥0.1mm (4mil) |
| Laser Drilling Size | - | 0.1mm (4mil) | 0.050mm (2mil) |
| Max Size (Unit) | - | 850mm x 570mm | 1000mm x 600mm |
| Max Size (Panel) | - | 1250mm x 570mm | 1320mm x 600mm |
| Aspect Ratio (Unit) | - | 20:1 | 28:1 |
| Aspect Ratio (Panel) | - | 25:1 | 35:1 |
| Material Capability | |||
| Lead-free / Halogen-free | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | ||
| High-speed PCB Material | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | ||
| High-frequency PCB Material | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | ||
| Others | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000 | ||
| Surface Finished | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating | ||
| Special Technology | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Drill Mixed RF PCB, Busbar PCB | ||
QUALITY ASSURANCE
Actual conditions are subject to confirmation with customer service.
As PCBs are custom products, returns are not supported. For quality issues, please contact customer service for a refund or replacement, but we do not bear any losses or costs beyond the product value. Delays in delivery due to force majeure factors such as power outages or water supply interruptions will not be compensated.
If there are any issues or special instructions, please communicate directly with customer service for confirmation. Do not leave messages, as we will not be responsible for any missed messages. Before and after payment, please confirm the process, quantity, and layers with customer service. Problems that arise after production or shipment will not be eligible for refunds. Since this product requires a high level of expertise, if the purchasing personnel are not knowledgeable, please confirm with your engineer or customer service. We will not be responsible for any issues caused by the customer's lack of understanding.
Orders placed before 17:00 are considered as placed on the same day; orders placed after 17:00 are considered as placed the next day. "24-hour delivery" refers to one day, not 24 hours. The delivery time provided by customer service and on the page does not include Sundays or holidays.
Green solder mask, white silkscreen, 1.6mm board thickness, HASL, 1oz copper thickness, vias with solder mask, line width/spacing 0.2mm, vias above 0.3mm. The Gerber format is used according to the provided files. (The quotation is based on standard processes; please inform customer service of any special process requirements for a new quotation.)
We ship PCB orders with the following options:
| Layer | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |
24h technical support, 24h Gerber files handling, complete EQ within 4-8 hours. Support 400 new project engineering reviews.
RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM.
All processes running 24 hours. Monthly production of more than 10K high-mix part numbers. Over 100 QTA orders processed daily.
24 hours quick response. 4 hours quick response for quotation requests.
We support a wide range of materials including Lead-free/Halogen-free (EM827, 370HR, S1000-2, IT180A), high-speed PCB material (Megtron6, Megtron4, Megtron7), high-frequency material (Ro3003, Ro4350B, CLTE), and specialty options like Polyimide, LCP, and BT.
We accept Gerber and CAD formats including RS-274-X, RS-274-D, DXP, Protel 99 SE, PADS, and GC-CAM files.
Since PCBs are custom-manufactured products, returns are not supported. For quality concerns, please reach out to customer service to discuss refund or replacement options. Process changes cannot be refunded after production has begun.
We offer rapid prototyping services. The shortest sample lead times are 24 hours for 2-layer PCBs, 36 hours for 4-layer PCBs, and 48 hours for 6-layer PCBs.
We offer various surface finishes including HASL, HASL-LF, ENIG (Electroless Nickel Immersion Gold), OSP, Immersion Tin, Immersion Silver, Gold Finger, and Hard/Soft Gold Plating.
Orders submitted before 17:00 count towards the same business day, while orders placed after 17:00 will count on the following day. Express terms like "24-hour delivery" represent one business day and exclude Sundays and public holidays.
